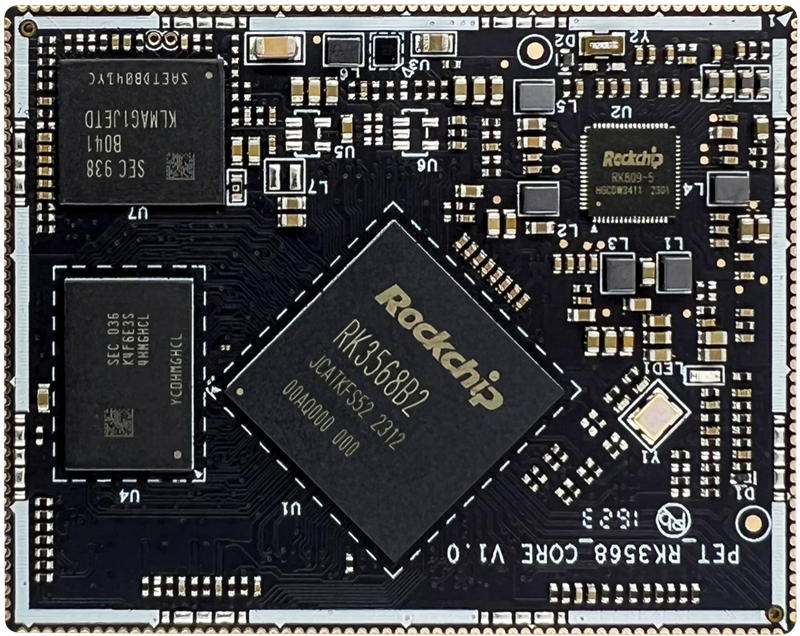

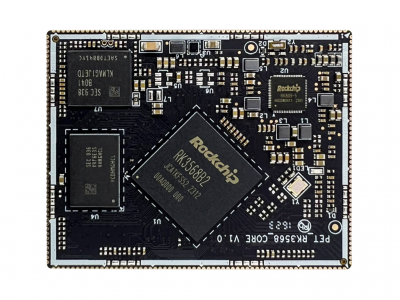

瑞芯微RK3568核心板

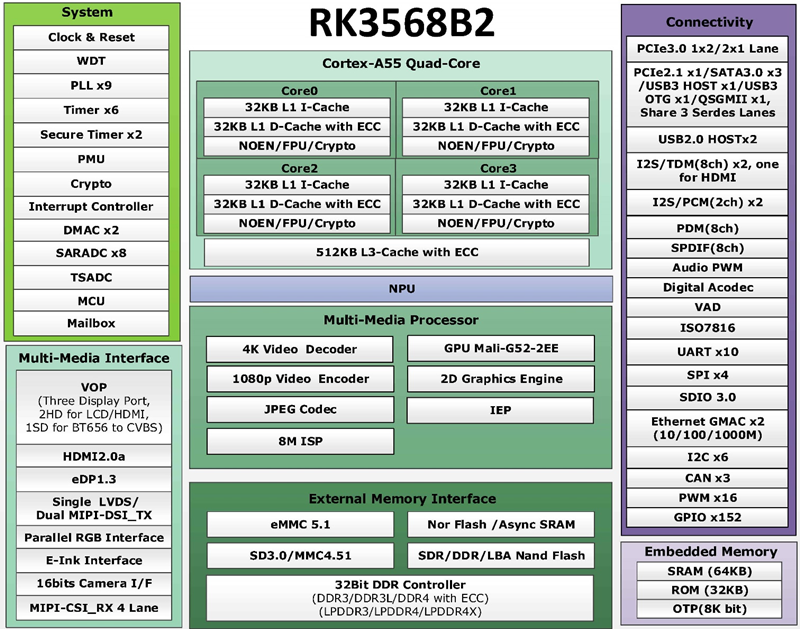

处理器

RK3568 Cortex A55四核64位ARM64，最高主频2.0G

内置NPU

RKNN NPU，1TOPS算力，用于AI计算

内置GPU

MALI-G52-2EE，支持OpenCL 2.0，OpenGLES 1.1、2.0、3.2，Vulkan1.1

内置视频编解码

支持4K@60fps H265格式硬解码、1080P@60fps硬编码

内存LPDDR4

2GB / 4GB / 8GB，标配2GB

存储EMMC

16GB / 32GB / 64GB / 128GB，标配 16GB

操作系统

支持安卓Android 12、Buildroot Linux、Debian、Ubuntu、鸿蒙HarmonyOS等

PET-RK3568核心板引脚功能

多屏异显输出

可同时支持3屏异显

LVDS显示输出

双8双通道1920x1080（通过底板MIPI转LVDS芯片实现）、单8单通道1280x800

eDP显示输出

最大支持分辨率 2560x1600

MIPI显示输出

双通道最大支持分辨率 2048x1536，单通道最大支持分辨率1920x1080

HDMI显示输出

最大支持分辨率 4096x2160

RGB/BT1120显示

最大支持分辨率 1920x1080

BT656/TVOUT显示

支持PAL/NTSC，支持RGB 8 Bit

视频输入接口

MIPI 1路(4 Lane)

按键接口

电源键、烧写键、复位键、ADC按键、GPIO按键、GPIO矩阵键盘

千兆以太网接口

2路

USB接口

USB3.0 2路、USB2.0 2路、OTG 1路；用于USB外设、4G/5G模组、USB摄像头等

SDIO接口

3路，可用于TF卡、WIFI蓝牙模组等

SPI接口

4路

SARADC接口

8路，10bit / 1MSPS / 12MHz频率；用于ADC按键、配置选择、ADC输入检测

I2C接口

5路，用于电容触摸屏，I2C外设等

UART串口

10路

I2S接口

3路

PWM接口

15路，用于IR红外输入、PWM输出、显示屏背光控制等

CAN接口

3路

PCIE3.0接口

1路，2 Lane；可以拆分为2路1 Lane，可用M2电子盘等

PCIE2.1接口

1路，1 Lane；可用于SATA固态盘等

SATA3.0接口

3路

SPDIF

1路，8通道

耳机输出接口

1路，双通道

喇叭输出接口

1路，8欧1.3W

麦克风输入接口

1路

GPIO/中断

多路

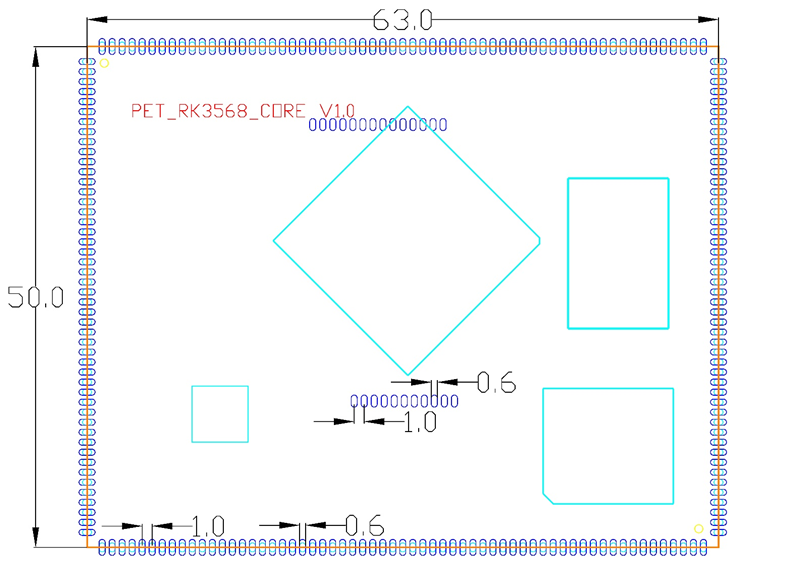

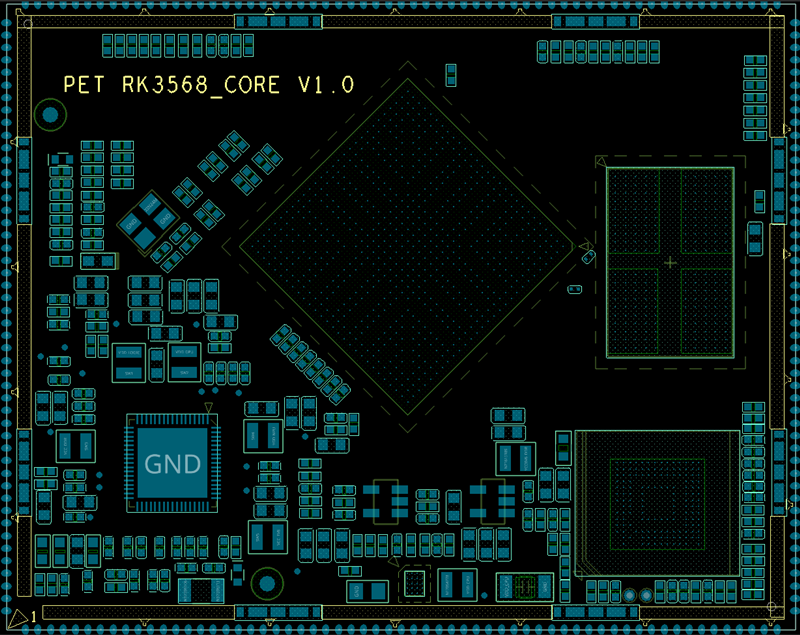

PET-RK3568核心板结构参数

尺寸

63 x 50 mm，厚度1.2mm

邮票孔间距

1.0mm

引脚数

243 pin

PCB工艺

八层板，沉金工艺

1

RK809_VDC

上电/按键启动选择

2

VCC5V0_SYS

5V电源输入

3

VCC3V3_SYS

3.3V电源输入

4

VCC3V3_SD

3.3V电源(TF卡)

5

VCC_3V3

3.3V电源输出

6

VCC_1V8

1.8V电源输出

7

GND

电源地

8

GPIO4_D2

GPIO

GPIO

9

EXT_EN

EXT_EN输出信号

10

PWRON_KEY

电源键输入信号

11

RESET_KEY

复位按键输入信号

12

GPIO0_C7_d

GPIO(调试灯)

HDMITX_CEC_M1/PWM0_M1/UART0_CTSn/GPIO0_C7_d

13

GND

电源地

14

PCIE30_RX1N

M.2接口

NVME电子盘

PCIE30_RX1N

15

PCIE30_RX1P

PCIE30_RX1P

16

PCIE30_RX0N

PCIE30_RX0N

17

PCIE30_RX0P

PCIE30_RX0P

18

PCIE30_TX1N

PCIE30_TX1N

19

PCIE30_TX1P

PCIE30_TX1P

20

PCIE30_TX0N

PCIE30_TX0N

21

PCIE30_TX0P

PCIE30_TX0P

22

PCIE30_REFCLKP_IN

PCIE30_REFCLKP_IN

23

PCIE30_REFCLKN_IN

PCIE30_REFCLKN_IN

24

PCIE20_REFCLKP

未使用

PCIE20_REFCLKP

25

PCIE20_REFCLKN

未使用

PCIE20_REFCLKN

26

GND

电源地

27

SATA2_TXP

SATA固态盘接口

PCIE20_TXP/SATA2_TXP/QSGMII_TXP_M1

28

SATA2_TXN

PCIE20_TXN/SATA2_TXN/QSGMII_TXN_M1

29

SATA2_RXP

PCIE20_RXP/SATA2_RXP/QSGMII_RXP_M1

30

SATA2_RXN

PCIE20_RXN/SATA2_RXN/QSGMII_RXN_M1

31

USB3_HOST1_SSTXP

USB3.0接口1信号

USB3_HOST1_SSTXP/SATA1_TXP/QSGMII_TXP_M0

32

USB3_HOST1_SSTXN

USB3_HOST1_SSTXN/SATA1_TXN/QSGMII_TXN_M0

33

USB3_HOST1_SSRXN

USB3_HOST1_SSRXN/SATA1_RXN/QSGMII_RXN_M0

34

USB3_HOST1_SSRXP

USB3_HOST1_SSRXP/SATA1_RXP/QSGMII_RXP_M0

35

USB3_OTG0_SSTXP

USB3.0接口2信号

USB3_OTG0_SSTXP/SATA0_TXP

36

USB3_OTG0_SSTXN

USB3_OTG0_SSTXN/SATA0_TXN

37

USB3_OTG0_SSRXN

USB3_OTG0_SSRXN/SATA0_RXN

38

USB3_OTG0_SSRXP

USB3_OTG0_SSRXP/SATA0_RXP

39

USB3_OTG0_DM

USB_OTG

USB3.0接口2信号

USB3_OTG0_DM

40

USB3_OTG0_DP

USB3_OTG0_DP

41

USB3_HOST1_DM

USB3.0接口1信号

USB3_HOST1_DM

42

USB3_HOST1_DP

USB3_HOST1_DP

43

USB3_HOST2_DM

USB2.0接口1

USB3_HOST2_DM

44

USB3_HOST2_DP

USB3_HOST2_DP

45

USB3_HOST3_DM

USB2.0接口

USB3_HOST3_DM

46

USB3_HOST3_DP

USB3_HOST3_DP

47

USB3_OTG0_VBUSDET

USB_OTG

USB3_OTG0_VBUSDET

48

USB3_OTG0_ID

USB_OTG

USB3_OTG0_ID

49

SDMMC0_DET_L

SDMMC0

TF卡接口

SDMMC0_DET/SATA_CP_DET/PCIE30X1_CLKREQn_M0/GPIO0_A4_u

50

SDMMC0_D1

SDMMC0_D1/UART2_RX_M1/UART6_RX_M1/PWM9_M1/GPIO1_D6_u

51

SDMMC0_D0

SDMMC0_D0/UART2_TX_M1/UART6_TX_M1/PWM8_M1/GPIO1_D5_u

52

SDMMC0_CLK

SDMMC0_CLK/TEST_CLKOUT/UART5_TX_M0/CAN0_RX_M1

53

SDMMC0_CMD

SDMMC0_CMD/PWM10_M1/UART5_RX_M0/CAN0_TX_M1/GPIO2_A1_u

54

SDMMC0_D2

SDMMC0_D2/ARMJTAG_TCK/UART5_CTSn_M0/GPIO1_D7_u

55

SDMMC0_D3

SDMMC0_D3/ARMJTAG_TMS/UART5_RTSn_M0/GPIO2_A0_u

56

SARADC_VIN2_LCD_ID

LCD型号 ADC配置

SARADC_VIN2

57

SARADC_VIN1_LCD_ID

LCD型号 ADC配置

SARADC_VIN1

58

SARADC_VIN0_KEY

ADC按键

SARADC_VIN0

59

GPIO1_D4_d

GPIO

GPIO1_D4_u

60

GPIO1_B1_d

GPIO

I2S1_SDO2_M0/I2S1_SDI2_M0/PDM_SDI2_M0/PCIE20_WAKEn_M2/ /GPIO1_B1_d

61

GPIO1_B2_d

GPIO

I2S1_SDO3_M0/I2S1_SDI1_M0/PDM_SDI1_M0/PCIE20_PERSTn_M2/GPIO1_B2_d

62

GMAC0_TXEN

千兆以太网0

GMAC0

GMAC0_TXEN/UART1_RTSn_M0/SPI1_CLK_M0/GPIO2_B5_u

63

GMAC0_TXD3

SDMMC1_CMD/GMAC0_TXD3/UART9_RX_M0/GPIO2_A7_u

64

GMAC0_TXD2

SDMMC1_D3/GMAC0_TXD2/UART7_TX_M0/GPIO2_A6_u

65

GMAC0_TXD1

GMAC0_TXD1/UART1_TX_M0/GPIO2_B4_u

66

GMAC0_TXD0

GMAC0_TXD0/UART1_RX_M0/GPIO2_B3_u

67

GMAC0_TXCLK

SDMMC1_CLK/GMAC0_TXCLK/UART9_TX_M0/GPIO2_B0_d

68

GMAC0_RXD3

SDMMC1_D1/GMAC0_RXD3/UART6_TX_M0/GPIO2_A4_u

69

GMAC0_RXD2

SDMMC1_D0/GMAC0_RXD2/UART6_RX_M0/GPIO2_A3_u

70

GMAC0_RXD1

I2S2_SCLK_RX_M0/GMAC0_RXD1/UART6_RTSn_M0/SPI1_MOSI_M0/GPIO2_B7_d

71

GMAC0_RXD0

GMAC0_RXD0/UART1_CTSn_M0/SPI1_MISO_M0/GPIO2_B6_u

72

GMAC0_RXDV_CRS

I2S2_LRCK_RX_M0/GMAC0_RXDV_CRS/UART6_CTSn_M0/SPI1_CS0_M0/GPIO2_C0_d

73

GMAC0_RXCLK

SDMMC1_D2/GMAC0_RXCLK/UART7_RX_M0/GPIO2_A5_u

74

GMAC0_MCLKINOUT

I2S2_SCLK_TX_M0/GMAC0_MCLKINOUT/UART7_CTSn_M0/SPI2_MISO_M0/GPIO2_C2_d

75

GMAC0_MDC

I2S2_LRCK_TX_M0/GMAC0_MDC/UART9_RTSn_M0/SPI2_MOSI_M0/GPIO2_C3_d

76

ETH0_REFCLKO_25M

I2S2_MCLK_M0/ETH0_REFCLKO_25M/UART7_RTSn_M0/SPI2_CLK_M0/GPIO2_C1_d

77

GMAC0_MDIO

I2S2_SDO_M0/GMAC0_MDIO/UART9_CTSn_M0/SPI2_CS0_M0/GPIO2_C4_d

78

GMAC0_INT/PMEB_GPIO2_D2

GPOP(风扇控制)

LCDC_D2/VOP_BT656_D2_M0/SPI0_CS0_M1/PCIE30X1_CLKREQn_M1/I2S1_LRCK_TX_M2/ GPIO2_D2_d

79

GMAC0_RSTn_GPIO2_D3

GPIO(GMAC0复位)

LCDC_D3/VOP_BT656_D3_M0/SPI0_CLK_M1/PCIE30X1_WAKEn_M1/I2S1_SDI0_M2/GPIO2_D3_d

80

GND

电源地

81

GPIO1_A4_d

SPDIF输出

I2S1_SCLK_RX_M0/UART4_RX_M0/PDM_CLK1_M0/SPDIF_TX_M0/GPIO1_A4_d

82

SPKP_OUT

喇叭输出

SPKP_OUT

83

SPKN_OUT

SPKN_OUT

84

GPIO1_B0_d

GPIO(耳机检测)

I2S1_SDO1_M0/I2S1_SDI3_M0/PDM_SDI3_M0/PCIE20_CLKREQn_M2/GPIO1_B0_d

85

HP_SNS

耳机输出

HP_SNS

86

HPR_OUT

HPR_OUT

87

HPL_OUT

HPL_OUT

88

MIC1_INP

麦克风输入

MIC1_INP

89

MIC1_INN

MIC1_INN

90

GND

电源地

91

GMAC1_MDC_M1/GPIO4_B6

千兆以太网1

GMAC1

CIF_HREF/EBC_SDLE/GMAC1_MDC_M1/UART1_RTSn_M1/I2S2_MCLK_M1/GPIO4_B6_d

92

GMAC1_MDIO_M1/GPIO4_B7

CIF_VSYNC/EBC_SDOE/GMAC1_MDIO_M1/I2S2_SCLK_TX_M1/GPIO4_B7_d

93

GMAC1_MCLKINOUT_M1/GPIO4_C1

CIF_CLKIN/EBC_SDCLK/GMAC1_MCLKINOUT_M1/UART1_CTSn_M1/I2S2_SCLK_RX_M1/GPIO4_C1_d

94

GMAC1_RXD3_M1/GPIO4_A2

CIF_D12/EBC_SDDO12/GMAC1_RXD3_M1/UART7_TX_M2/PDM_SDI2_M1/GPIO4_A2_d

95

GMAC1_RXD2_M1/GPIO4_A1

CIF_D11/EBC_SDDO11/GMAC1_RXD2_M1/PDM_SDI1_M1/GPIO4_A1_d

96

GMAC1_RXD1_M1/GPIO4_B0

CAM_CLKOUT1/EBC_SDCE2/GMAC1_RXD1_M1/SPI3_MISO_M0/I2S1_SDO1_M1/GPIO4_B0_d

97

GMAC1_RXD0_M1/GPIO4_A7

CAM_CLKOUT0/EBC_SDCE1/GMAC1_RXD0_M1/SPI3_CS1_M0/I2S1_LRCK_RX_M1/GPIO4_A7_d

98

GMAC1_RXDV_CRS_M1/GPIO4_B1

ISP_PRELIGHT_TRIG/EBC_SDCE3/GMAC1_RXDV_CRS_M1/I2S1_SDO2_M1/GPIO4_B1_d

99

GMAC1_RXCLK_M1/GPIO4_A3

CIF_D13/EBC_SDDO13/GMAC1_RXCLK_M1/UART7_RX_M2/PDM_SDI3_M1/GPIO4_A3_d

100

GMAC1_TXEN_M1/GPIO4_A6

ISP_FLASHTRIGOUT/EBC_SDCE0/GMAC1_TXEN_M1/SPI3_CS0_M0/I2S1_SCLK_RX_M1/GPIO4_A6_d

101

GMAC1_TXD3_M1/GPIO3_D7

CIF_D9/EBC_SDDO9/GMAC1_TXD3_M1/UART1_RX_M1/PDM_SDI0_M1/GPIO3_D7_d

102

GMAC1_TXD2_M1/GPIO3_D6

CIF_D8/EBC_SDDO8/GMAC1_TXD2_M1/UART1_TX_M1/PDM_CLK0_M1/GPIO3_D6_d

103

GMAC1_TXD1_M1/GPIO4_A5

CIF_D15/EBC_SDDO15/GMAC1_TXD1_M1/UART9_RX_M2/I2S2_LRCK_RX_M1/GPIO4_A5_d

104

GMAC1_TXD0_M1/GPIO4_A4

CIF_D14/EBC_SDDO14/GMAC1_TXD0_M1/UART9_TX_M2/I2S2_LRCK_TX_M1/GPIO4_A4_d

105

GMAC1_TXCLK_M1/GPIO4_A0

CIF_D10/EBC_SDDO10/GMAC1_TXCLK_M1/PDM_CLK1_M1/GPIO4_A0_d

106

GMAC1_RSTn_GPIO2_D1

GPIO(GMAC1复位)

LCDC_D1/VOP_BT656_D1_M0/SPI0_MOSI_M1/PCIE20_WAKEn_M1/I2S1_SCLK_TX_M2/GPIO2_D1_d

107

ETH1_REFCLKO_25M_M0

25M时钟(GMAC1)

LCDC_D15/VOP_BT1120_D6/ETH1_REFCLKO_25M_M0/SDMMC2_PWREN_M1/GPIO3_B0_d

108

GMAC1_INT/PMEB_GPIO2_D0

GPIO

LCDC_D0/VOP_BT656_D0_M0/SPI0_MISO_M1/PCIE20_CLKREQn_M1/I2S1_MCLK_M2/GPIO2_D0_d

109

UART8_RTSn_M0

UART8(BT)

SDMMC1_PWREN/I2C4_SDA_M1/UART8_RTSn_M0/CAN2_RX_M1/GPIO2_B1_d

110

UART8_CTSn_M0

SDMMC1_DET/I2C4_SCL_M1/UART8_CTSn_M0/CAN2_TX_M1/GPIO2_B2_u

111

UART8_RX_M0

CLK32K_OUT1/UART8_RX_M0/SPI1_CS1_M0/GPIO2_C6_d

112

UART8_TX_M0

I2S2_SDI_M0/GMAC0_RXER/UART8_TX_M0/SPI2_CS1_M0/GPIO2_C5_d

113

WIFI_REG_ON_H_GPIO3_D5

GPIO(WIFI)

CIF_D7/EBC_SDDO7/SDMMC2_PWREN_M0/I2S1_SDI3_M1/VOP_BT656_D7_M1/GPIO3_D5_d

114

WIFI_WAKE_HOST_H_GPIO3_D4

GPIO(MIPI_CSI)

CIF_D6/EBC_SDDO6/SDMMC2_DET_M0/I2S1_SDI2_M1/VOP_BT656_D6_M1/GPIO3_D4_d

115

SDMMC2_CMD_M0

SDIO(WIFI)

CIF_D4/EBC_SDDO4/SDMMC2_CMD_M0/I2S1_SDI0_M1/VOP_BT656_D4_M1/GPIO3_D2_d

116

SDMMC2_D3_M0

CIF_D3/EBC_SDDO3/SDMMC2_D3_M0/I2S1_SDO0_M1/VOP_BT656_D3_M1/GPIO3_D1_d

117

SDMMC2_D2_M0

CIF_D2/EBC_SDDO2/SDMMC2_D2_M0/I2S1_LRCK_TX_M1/VOP_BT656_D2_M1/GPIO3_D0_d

118

SDMMC2_D1_M0

CIF_D1/EBC_SDDO1/SDMMC2_D1_M0/I2S1_SCLK_TX_M1/VOP_BT656_D1_M1/GPIO3_C7_d

119

SDMMC2_CLK_M0

CIF_D5/EBC_SDDO5/SDMMC2_CLK_M0/I2S1_SDI1_M1/VOP_BT656_D5_M1/GPIO3_D3_d

120

SDMMC2_D0_M0

CIF_D0/EBC_SDDO0/SDMMC2_D0_M0/I2S1_MCLK_M1/VOP_BT656_D0_M1/GPIO3_C6_d

121

HOST_WAKE_BT_H_GPIO3_A2

GPIO(BT)

LCDC_D9/VOP_BT1120_D1/GMAC1_TXD2_M0/I2S3_MCLK_M0/SDMMC2_D1_M1/GPIO3_A2_d

122

I2S3_SCLK_M0

I2S3(BT)

LCDC_D10/VOP_BT1120_D2/GMAC1_TXD3_M0/I2S3_SCLK_M0/SDMMC2_D2_M1/GPIO3_A3_d

123

I2S3_SDI_M0

LCDC_D13/VOP_BT1120_CLK/GMAC1_TXCLK_M0/I2S3_SDI_M0/SDMMC2_CLK_M1/GPIO3_A6_d

124

I2S3_SDO_M0

LCDC_D12/VOP_BT1120_D4/GMAC1_RXD3_M0/I2S3_SDO_M0/SDMMC2_CMD_M1/GPIO3_A5_d

125

I2S3_LRCK_M0

LCDC_D11/VOP_BT1120_D3/GMAC1_RXD2_M0/I2S3_LRCK_M0/SDMMC2_D3_M1/GPIO3_A4_d

126

BT_REG_ON_H_GPIO3_A0

GPIO(BT)

LCDC_CLK/VOP_BT656_CLK_M0/SPI2_CLK_M1/UART8_RX_M1/I2S1_SDO1_M2/GPIO3_A0_d

127

WIFIBT_32KIN_2T2R

32.768K时钟输出

128

GPIO2_D7_d

GPIO

LCDC_D7/VOP_BT656_D7_M0/SPI2_MISO_M1/UART8_TX_M1/I2S1_SDO0_M2/GPIO2_D7_d

129

PCIE30X2_WAKEn_M1

M.2接口

LCDC_D5/VOP_BT656_D5_M0/SPI2_CS0_M1/PCIE30X2_WAKEn_M1/I2S1_SDI2_M2/GPIO2_D5_d

130

PCIECLKIC_OE_H_GPIO3_A7

GPIO

LCDC_D14/VOP_BT1120_D5/GMAC1_RXCLK_M0/SDMMC2_DET_M1/GPIO3_A7_d

131

PCIE30X2_CLKREQn_M1

M.2接口

LCDC_D4/VOP_BT656_D4_M0/SPI2_CS1_M1/PCIE30X2_CLKREQn_M1/I2S1_SDI1_M2/GPIO2_D4_d

132

PCIE30X2_PERSTn_M1

M.2接口

LCDC_D6/VOP_BT656_D6_M0/SPI2_MOSI_M1/PCIE30X2_PERSTn_M1/I2S1_SDI3_M2/GPIO2_D6_d

133

SATA2_ACT_LED/GPIO4_C4

GPIO

EDP_HPDIN_M0/SPDIF_TX_M2/SATA2_ACT_LED/PCIE30X2_PERSTn_M2/I2S3_LRCK_M1/GPIO4_C4_d

134

RTCIC_INT_L_GPIO0_D3_d

GPIO(RTC中断)

GPIO0_D3_d

135

UART3_RX_M1

UART3

LCDC_D23/PWM13_M0/GMAC1_MCLKINOUT_M0/UART3_RX_M1/PDM_SDI3_M2/GPIO3_C0_d

136

UART3_TX_M1

LCDC_D22/PWM12_M0/GMAC1_TXEN_M0/UART3_TX_M1/PDM_SDI2_M2/GPIO3_B7_d

137

UART4_RX_M1

UART4

LCDC_D16/VOP_BT1120_D7/GMAC1_RXD0_M0/UART4_RX_M1/PWM8_M0/GPIO3_B1_d

138

UART4_TX_M1

LCDC_D17/VOP_BT1120_D8/GMAC1_RXD1_M0/UART4_TX_M1/PWM9_M0/GPIO3_B2_d

139

PWM14_M0/UART7_TX_M1

UART7

PWM14_M0/VOP_PWM_M1/GMAC1_MDC_M0/UART7_TX_M1/PDM_CLK1_M2/GPIO3_C4_d

140

SPDIF_TX_M1//UART7_RX_M1

PWM15_IR_M0/SPDIF_TX_M1/GMAC1_MDIO_M0/UART7_RX_M1/I2S1_LRCK_RX_M2/GPIO3_C5_d

141

UART9_RX_M1

UART9

PWM13_M1/SPI3_CS0_M1/SATA0_ACT_LED/UART9_RX_M1/I2S3_SDI_M1/GPIO4_C6_d

142

UART9_TX_M1

PWM12_M1/SPI3_MISO_M1/SATA1_ACT_LED/UART9_TX_M1/I2S3_SDO_M1/GPIO4_C5_d

143

UART2_TX_M0_DEBUG

UART2

UART2_TX_M0/GPIO0_D1_u

144

UART2_RX_M0_DEBUG

UART2_RX_M0/GPIO0_D0_u

145

CAN1_RX_M1/GPIO4_C2

CAN

PWM14_M1/SPI3_CLK_M1/CAN1_RX_M1/PCIE30X2_CLKREQn_M2/I2S3_MCLK_M1/GPIO4_C2_d

146

CAN1_TX_M1/GPIO4_C3

PWM15_IR_M1/SPI3_MOSI_M1/CAN1_TX_M1/PCIE30X2_WAKEn_M2/I2S3_SCLK_M1/GPIO4_C3_d

147

GND

电源地

148

PWM7_IR

IR红外输入

PWM7_IR/SPI0_CS0_M0/PCIE30X2_PERSTn_M0/GPIO0_C6_d

149

PWM6_M0/GPIO0_C5_d

PWM6

PWM6/SPI0_MISO_M0/PCIE30X2_WAKEn_M0/GPIO0_C5_d

150

PWM2_M0/GPIO0_C1_d

PWM2

PWM2_M0/NPUAVS/UART0_TX/MCU_JTAG_TDI/GPIO0_C1_d

151

PWM1_M0/GPIO0_C0_d

PWM1

PWM1_M0/GPUAVS/UART0_RX/GPIO0_C0_d

152

SPI1_CLK_M1/GPIO3_C3_d

GPIO

LCDC_DEN/VOP_BT1120_D15/SPI1_CLK_M1/UART5_RX_M1/I2S1_SCLK_RX_M2/GPIO3_C3_d

153

SPI1_CS0_M1/GPIO3_A1_d

GPIO

LCDC_D8/VOP_BT1120_D0/SPI1_CS0_M1/PCIE30X1_PERSTn_M1/SDMMC2_D0_M1/GPIO3_A1_d

154

SPI1_MISO_M1/GPIO3_C2_d

GPIO

LCDC_VSYNC/VOP_BT1120_D14/SPI1_MISO_M1/UART5_TX_M1/I2S1_SDO3_M2/GPIO3_C2_d

155

SPI1_MOSI_M1/GPIO3_C1_d

GPIO

LCDC_HSYNC/VOP_BT1120_D13/SPI1_MOSI_M1/PCIE20_PERSTn_M1/I2S1_SDO2_M2/GPIO3_C1_d

156

I2C4_SDA_M0

I2C4

I2C4_SDA_M0/EBC_VCOM/GMAC1_RXER_M1/SPI3_MOSI_M0/I2S2_SDI_M1/GPIO4_B2_d

157

I2C4_SCL_M0

I2C4_SCL_M0/EBC_GDOE/ETH1_REFCLKO_25M_M1/SPI3_CLK_M0/I2S2_SDO_M1/GPIO4_B3_d

158

I2C2_SDA_M1

I2C2

I2C2_SDA_M1/EBC_GDSP/CAN2_RX_M0/ISP_FLASH_TRIGIN/VOP_BT656_CLK_M1/GPIO4_B4_d

159

I2C2_SCL_M1

I2C2_SCL_M1/EBC_SDSHR/CAN2_TX_M0/I2S1_SDO3_M1/GPIO4_B5_d

160

I2C5_SDA_M0/GPIO3_B4_d

GPIO(NFC)

LCDC_D19/VOP_BT1120_D10/GMAC1_RXER_M0/I2C5_SDA_M0/PDM_SDI1_M2/GPIO3_B4_d

161

I2C5_SCL_M0/GPIO3_B3_d

GPIO(NFC)

LCDC_D18/VOP_BT1120_D9/GMAC1_RXDV_CRS_M0/I2C5_SCL_M0/PDM_SDI0_M2/GPIO3_B3_d

162

I2C3_SDA_M0/GPIO1_A0_d

GPIO(NFC)

I2C3_SDA_M0/UART3_RX_M0/CAN1_RX_M0/AUDIOPWM_LOUT_P/ GPIO1_A0_u

163

I2C3_SCL_M0/GPIO1_A1_u

GPIO

I2C3_SCL_M0/UART3_TX_M0/CAN1_TX_M0/AUDIOPWM_LOUT_N/ GPIO1_A1_u

164

GPIO3_B5_d

GPIO(LCD复位)

LCDC_D20/VOP_BT1120_D11/GMAC1_TXD0_M0/I2C3_SCL_M1/PWM10_M0/GPIO3_B5_d

165

GPIO3_B6_d

GPIO(LCD电源)

LCDC_D21/VOP_BT1120_D12/GMAC1_TXD1_M0/I2C3_SDA_M1/PWM11_IR_M0/GPIO3_B6_d

166

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

MIPI0/LVDS显示屏

MIPI_DSI_TX0_D3P/LVDS_TX0_D3P

167

MIPI_DSI_TX0_D3N/LVDS_TX0_D3N

MIPI_DSI_TX0_D3N/LVDS_TX0_D3N

168

MIPI_DSI_TX0_D2P/LVDS_TX0_D2P

MIPI_DSI_TX0_D2P/LVDS_TX0_D2P

169

MIPI_DSI_TX0_D2N/LVDS_TX0_D2N

MIPI_DSI_TX0_D2N/LVDS_TX0_D2N

170

MIPI_DSI_TX0_CLKP/LVDS_TX0_CLKP

MIPI_DSI_TX0_CLKP/LVDS_TX0_CLKP

171

MIPI_DSI_TX0_CLKN/LVDS_TX0_CLKN

MIPI_DSI_TX0_CLKN/LVDS_TX0_CLKN

172

MIPI_DSI_TX0_D1P/LVDS_TX0_D1P

MIPI_DSI_TX0_D1P/LVDS_TX0_D1P

173

MIPI_DSI_TX0_D1N/LVDS_TX0_D1N

MIPI_DSI_TX0_D1N/LVDS_TX0_D1N

174

MIPI_DSI_TX0_D0P/LVDS_TX0_D0P

MIPI_DSI_TX0_D0P/LVDS_TX0_D0P

175

MIPI_DSI_TX0_D0N/LVDS_TX0_D0N

MIPI_DSI_TX0_D0N/LVDS_TX0_D0N

176

MIPI_DSI_TX1_D3P

MIPI显示屏

MIPI_DSI_TX1_D3P

177

MIPI_DSI_TX1_D3N

MIPI_DSI_TX1_D3N

178

MIPI_DSI_TX1_D2P

MIPI_DSI_TX1_D2P

179

MIPI_DSI_TX1_D2N

MIPI_DSI_TX1_D2N

180

MIPI_DSI_TX1_CLKP

MIPI_DSI_TX1_CLKP

181

MIPI_DSI_TX1_CLKN

MIPI_DSI_TX1_CLKN

182

MIPI_DSI_TX1_D1P

MIPI_DSI_TX1_D1P

183

MIPI_DSI_TX1_D1N

MIPI_DSI_TX1_D1N

184

MIPI_DSI_TX1_D0P

MIPI_DSI_TX1_D0P

185

MIPI_DSI_TX1_D0N

MIPI_DSI_TX1_D0N

186

GND

电源地

187

HDMITX_CEC_M0

HDMI显示输出

HDMITX_CEC_M0

188

HDMITX_SDA

HDMITX_SDA

189

HDMITX_SCL

HDMITX_SCL

190

HDMI_TX_HPDIN

HDMI_TX_HPDIN

191

HDMI_TXCLKN_PORT

HDMI_TXCLKN_PORT

192

HDMI_TXCLKP_PORT

HDMI_TXCLKP_PORT

193

HDMI_TX0N_PORT

HDMI_TX0N_PORT

194

HDMI_TX0P_PORT

HDMI_TX0P_PORT

195

HDMI_TX1N_PORT

HDMI_TX1N_PORT

196

HDMI_TX1P_PORT

HDMI_TX1P_PORT

197

HDMI_TX2N_PORT

HDMI_TX2N_PORT

198

HDMI_TX2N_PORT

HDMI_TX2N_PORT

199

GND

电源地

200

EDP_HPDIN_M1

EDP显示屏

EDP_HPDIN_M1

201

EDP_TX_AUXN

EDP_TX_AUXN

202

EDP_TX_AUXP

EDP_TX_AUXP

203

EDP_TX_D3N

EDP_TX_D3N

204

EDP_TX_D3P

EDP_TX_D3P

205

EDP_TX_D2N

EDP_TX_D2N

206

EDP_TX_D2P

EDP_TX_D2P

207

EDP_TX_D1N

EDP_TX_D1N

208

EDP_TX_D1P

EDP_TX_D1P

209

EDP_TX_D0N

EDP_TX_D0N

210

EDP_TX_D0P

EDP_TX_D0P

211

LCD1_BL_PWM4/GPIO0_C3_d

PWM4(LCD)

PWM4/VOP_PWM_M0/PCIE30X1_PERSTn_M0/MCU_JTAG_TRSTn/GPIO0_C3_d

212

LCD2_BL_PWM5/GPIO0_C4_d

PWM5(LCD)

PWM5/SPI0_CS1_M0/UART0_RTSn/GPIO0_C4_d

213

TP_RST_L_GPIO0_B6

GPIO(TP复位)

I2C2_SDA_M0/SPI0_MOSI_M0/PCIE20_PERSTn_M0/PWM2_M1/GPIO0_B6_u

214

TP_INT_L_GPIO0_B5

GPIO(TP中断)

I2C2_SCL_M0/SPI0_CLK_M0/PCIE20_WAKEn_M0/PWM1_M1/GPIO0_B5_u

215

I2C1_SCL_TP

I2C1

I2C1_SCL/CAN0_TX_M0/PCIE30X1_BUTTONRSTn/MCU_JTAG_TDO/GPIO0_B3_u

216

I2C1_SDA_TP

I2C1_SDA/CAN0_RX_M0/PCIE20_BUTTONRSTn/MCU_JTAG_TCK/GPIO0_B4_u

217

LCD0_BL_PWM0

PWM0(LCD)

PWM0_M0/CPUAVS/GPIO0_B7_d

218

GPIO0_A5_d

GPIO(背光控制)

SDMMC0_PWREN/SATA_MP_SWITCH/PCIE20_CLKREQn_M0/GPIO0_A5_d

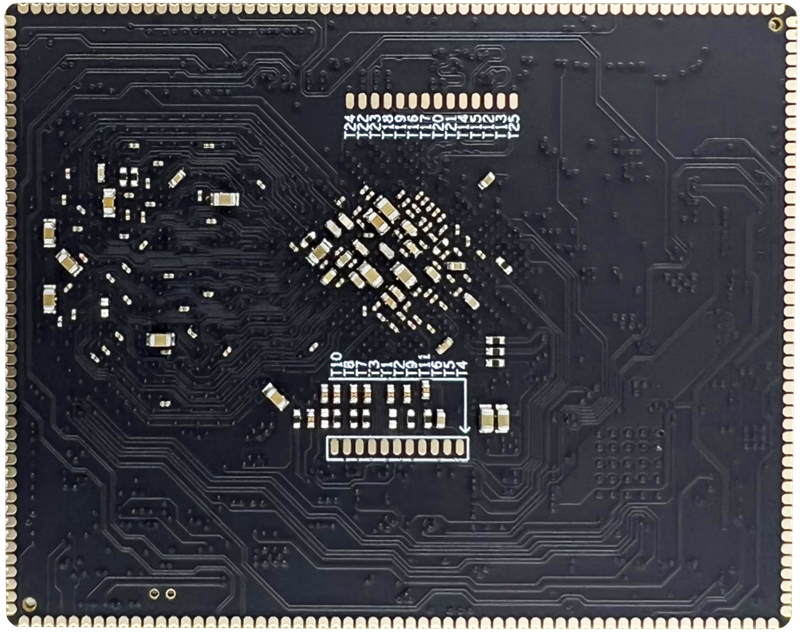

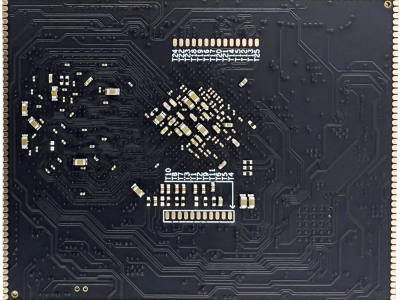

T1

GPIO1_D1_d

GPIO

FSPI_D0/FLASH_RDY/GPIO1_D1_u

T2

GPIO1_D2_d

GPIO

FSPI_D1/FLASH_RDn/GPIO1_D2_u

T3

GPIO1_D3_d

GPIO

FSPI_CS0n/FLASH_CS0n/GPIO1_D3_u

T4

GPIO0_D4_d

GPIO(摄像头)

GPIO0_D4_d

T5

GPIO0_D5_d

GPIO(摄像头)

GPIO0_D5_d

T6

GPIO0_D6_d

GPIO(摄像头)

GPIO0_D6_d

T7

SARADC_VIN3

ADC3

SARADC_VIN3

T8

SARADC_VIN4

ADC4

SARADC_VIN4

T9

SARADC_VIN5

ADC5

SARADC_VIN5

T10

SARADC_VIN6

ADC6

SARADC_VIN6

T11

SARADC_VIN7

ADC7

SARADC_VIN7

T12

MIPI_CSI_RX_D0P

MIPI CSI摄像头

MIPI_CSI_RX_D0P

T13

MIPI_CSI_RX_D0N

MIPI_CSI_RX_D0N

T14

MIPI_CSI_RX_D1P

MIPI_CSI_RX_D1P

T15

MIPI_CSI_RX_D1N

MIPI_CSI_RX_D1N

T16

MIPI_CSI_RX_D2P

MIPI_CSI_RX_D2P

T17

MIPI_CSI_RX_D2N

MIPI_CSI_RX_D2N

T18

MIPI_CSI_RX_D3P

MIPI_CSI_RX_D3P

T19

MIPI_CSI_RX_D3N

MIPI_CSI_RX_D3N

T20

MIPI_CSI_RX_CLK0P

MIPI_CSI_RX_CLK0P

T21

MIPI_CSI_RX_CLK0N

MIPI_CSI_RX_CLK0N

T22

MIPI_CSI_RX_CLK1P

MIPI_CSI_RX_CLK1P

T23

MIPI_CSI_RX_CLK1N

MIPI_CSI_RX_CLK1N

T24

CIF_CLKOUT

CIF_CLKOUT/EBC_GDCLK/PWM11_IR_M1/GPIO4_C0_d

T25

REFCLK_OUT_CAM

REFCLK_OUT/GPIO0_A0_d
